Full 28/32nds tread depth help sprovide long original tread life

Extra-wide tread (4-10mm wider than the competitive product)helps provide stability while helping to improve handlingand mileage.

Four steel belts are applied to ensure the strength of the tire and heavy loading ability

Unique wave-like 3D sipe design provide exceptional traction in dry and and slippery conditions.

Optimized winter compound Application-specific treadcompound for maximum snowtraction, outstanding handlingand stability, casing protectionand retreadability

M+S and 3PMSF, It's safer todrive in snow and mud.

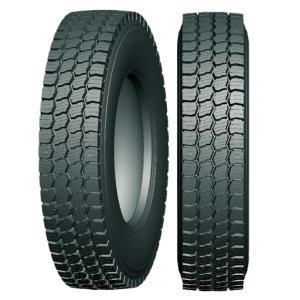

Winter tire Heavy Truck tire DWD100

1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.

Pattern	Size	PR	Tread Depth		Standard Rim	Pressure(kPa)		Max. Load(kg)		Load Index		Speed Grade	Inflated Diameter
			Tread Depth			Pressure(kPa)		Max. Load(kg)		Load Index			mm		inch
			mm	1/32in		Single	Dual	Single	Dual	Single	Dual		Overall Diameter	Section Width	Overall Diameter	Section Width
DWD100	11R22.5	16	21	26	8.25	850	850	3150	2900	148	145	L	1054	279	41	11
DWD100	11R24.5	16	21	26	8.25	830	830	3250	3000	149	146	L	1104	279	43	11

2.PROCESS EQUIPMENT

R&D 4.0

Meeting demands of customers is our final standard of testing

3.Production Process

Automatic apexing machine

◆ Reduce the manual mis-operation.

◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.

Automatic apexing machine

◆ Reduce the manual mis-operation.

4.Technological advantages

Common tire mileage under standard use condition as following:

TT(Tube Type)tire: 60,000km to 100,000km

TL tire(Tubeless Type):150,000km to 200,000km

TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.

Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
