DISTANCE : ≤1000km | ROAD CONDITIONS : Highways and National Highways |
| SPEED : ≤ 120km/h | LOAD : Standard Load |
| POSITION : Trailer |
- Product Design: Benchmarking with world-class brands (B brand, G brand), Adopting mature and market validated design and construction technologies.
- Design Concept: Adopting FEA and STOT technology to analyze the force and temperature fields of tires to achieve optimal contour design and tread pattern design.
- Construction features: CAE tool application + new materials + new pattern design
- Special Process： long circulation of Cooling water to make sure of semi-parts clean, stable length and excellent adhesion;
- Indepedent high-pressure air lines (dual air lines) in the building machine to ensure the inner profile reaching standard and carcass body ply turn up is stable.
- Performance characteristics: high wear resistance (high saturation,The proportion of pattern groove and pattern block is small), low roll resistance, high cost performance
- Long-wearing special tread compound: Nd-gold technology and supper abrasion furace black improved wear performance and durabilityperformance
- Optimized profile design: Optimized the contour design, strength > 120% of the standard value, durability > 70h
- Variable pitch pattern design: prevent resonance between pattern blocks and reduce driving noise

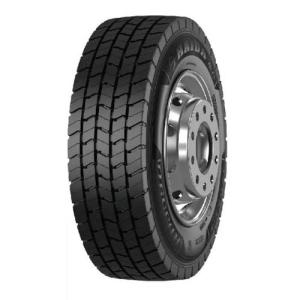

Trailer Heavy Truck Tire DLT916
1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.
SIZE | PR | PATTERN | Tread Depth（mm） | Tread Width （mm） | Standard Rim | Max Load（kg） | Pressure（kpa） | Speed Grade | ||
Single | Dual | Single | Dual | |||||||
11R22.5 | 16PR | DLT916 | 9.5 | 216 | 8.25 | 3000 | 2725 | 830 | 830 | M |
| 295/75R22.5 | 16PR | DLT916 | 9.5 | 216 | 9.00 | 3000 | 2725 | 830 | 830 | M |
2.PROCESS EQUIPMENT
R&D 4.0
Meeting demands of customers is our final standard of testing
3.Production Process
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
4.Technological advantages
Common tire mileage under standard use condition as following:
TT(Tube Type)tire: 60,000km to 100,000km
TL tire(Tubeless Type):150,000km to 200,000km
TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.
Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
