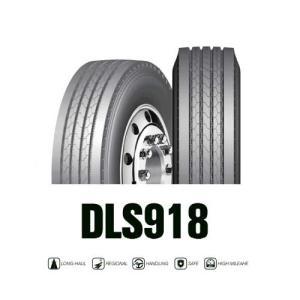

Truck & TBR tire Mining and Building tire DLS918

1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.

Size	PR	Tread Depth		Standard Rim	Pressure(PSI)		Max. Load(LBS)		Load Index		Speed Grade	Inflated Diameter
		Tread Depth			Pressure(PSI)		Max. Load(LBS)		Load Index			mm		inch
		mm	32in		Single	Dual	Single	Dual	Single	Dual		Overal Diameter	Section Width	Overal Diameter	Section Width
11R22.5	16	15	19	8.25	120	120	6610	6005	146	143	M	1054	279	41	11
11R24.5	14	15	19	8.25	105	105	6610	6005	146	143	M	1104	279	43	11
11R24.5	16	15	19	8.25	120	120	7160	6610	149	146	M	1104	279	43	11
215/75R17.5	14	13	16	6.00	102	102	3745	3525	126	124	M	767	211	30	8
225/70R19.5	14	13	16	6.75	110	110	3970	3750	128	126	M	811	226	38	9
235/75R17.5	14	13	16	6.75	112	112	4410	4190	132	130	M	797	233	31	9
245/70R19.5	16	13	16	7.50	120	120	4940	4670	136	134	L	839	248	33	10
265/70R19.5	16	14	18	7.50	110	110	5510	5205	140	138	L	867	262	34	10
255/7OR22.5	14	14	18	7.50	110	110	5205	4675	138	134	L	930	255	37	10
255/70R22.5	16	14	18	7.50	120	120	5510	5070	140	137	L	930	255	37	10
275/70R22.5	16	14	18	8.25	130	130	6945	6395	148	145	L	958	276	38	11
275/80R22.5	18	15	19	8.25	130	130	7160	6610	149	146	L	1012	276	40	11
295/80R22.5	18	15	20	9.00	131	130	7825	7160	152	149	M	298	298	41	12
285/75R24.5	14	15	19	8.25	110	110	6175	5680	144	141	M	1050	283	41	11
285/75R24.5	16	15	19	8.25	120	120	6780	6175	147	144	M	1050	283	41	11
295/75R22.5	14	15	19	9.00	110	110	6175	5675	144	141	M	1014	298	40	12
295/75R22.5	16	15	19	9.00	120	120	6610	6005	146	143	M	1014	298	40	12
315/80R22.5	20	16.5	21	9.00	130	130	9090	8270	156	150	L	1076	312	42	12

Longitudinal pattern and lateral fine groove design provideexcellent handling stability and anti-skid performance of the tire.
The special wear-resistant tread formula design for medium andlong distance tires can extend the driving range and service lifeof tires.
The optimized ground profile and groove distribution, providebalanced ground pressure and long service life.
Groove bottom protectors and stone ejectors help to reduce stonedrilling to extend casing life.

2.PROCESS EQUIPMENT

R&D 4.0

Meeting demands of customers is our final standard of testing

3.Production Process

Automatic apexing machine

◆ Reduce the manual mis-operation.

◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.

Automatic apexing machine

◆ Reduce the manual mis-operation.

4.Technological advantages

Common tire mileage under standard use condition as following:

TT(Tube Type)tire: 60,000km to 100,000km

TL tire(Tubeless Type):150,000km to 200,000km

TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.

Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
