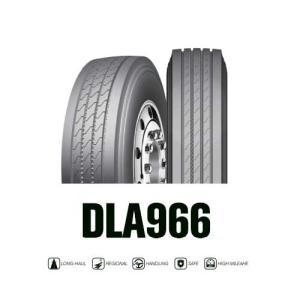

Truck & TBR tire Mining and Building tire DLA966
1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.
| Size | PR | Tread Depth | Standard Rim |
Pressure(PSI) |
Max. Load(LBS) |
Load Index | Speed Grade |
Inflated Diameter | |||||||
| mm | inch | ||||||||||||||
| mm | 32in | Single | Dual | Single | Dual | Single | Dual | Overal Diameter |
Section Width |
Overal Diameter |
Section Width |
||||
| 11R22.5 | 16 | 15 | 19 | 8.25 | 120 | 120 | 6610 | 6005 | 146 | 143 | M | 1054 | 279 | 41 | 11 |
| 11R24.5 | 16 |
15 | 19 | 8.25 | 120 |
120 |
7160 |
6610 |
149 |
146 |
M | 1104 | 279 | 43 | 11 |
| 285/75R24.5 |
16 | 15 | 19 | 8.25 | 120 | 120 | 6870 | 6175 | 147 | 144 | M | 1050 | 283 | 41 | 11 |
| 295/75R22.5 | 20 | 15 |
19 |
9.00 |
120 |
120 |
6610 | 6005 |
146 |
143 | M | 1014 | 298 | 40 | 12 |
| 315/80R22.5 | 20 |
15 |
19 |
9.00 |
130 | 130 |
9090 | 8270 | 156 |
150 | L | 1076 | 312 | 42 | 12 |
- Four straight groove design, provide excellent skid resistance, goodcontrol performance, low roll resistance, efficient fuel saving.
- The special wear-resistant tread fommula design for medium and long distancetires can extend the driving range and service life of tires.
- The ground profile and groove distribution are optimized, the ground pressuredistribution is more balanced, the tread is more wear resistant, and the offsetwear is effectively prevented.
2.PROCESS EQUIPMENT
R&D 4.0
Meeting demands of customers is our final standard of testing
3.Production Process
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
4.Technological advantages
Common tire mileage under standard use condition as following:
TT(Tube Type)tire: 60,000km to 100,000km
TL tire(Tubeless Type):150,000km to 200,000km
TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.
Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
