Big block pattern provides excellent grip and stronger traction.

The open shoulder design ensures fast heat dissipation.

Better anti-puncture performance ensures safe driving

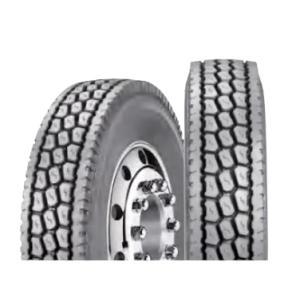

truck drive tires HRD08

1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.

Size	PR	Tread Depth		Standard Rim	Pressure (PSI)		Max. Load(LBS)		Load Index		Speed Grade	Inflated Diameter
		Tread Depth			Pressure (PSI)		Max. Load(LBS)		Load Index			mm		inch
		mm	1/32in		Single	Dual	Single	Dual	Single	Dual		Overall Section	Diameter Width	Overall Section	Diameter Width
285/75R24.5	16	23	28.3	8.25	120	120	6780	6175	147	144	M	1050	283	41	11
295/75R22.5	16	20	26	9	120	120	6610	6005	146	143	M	1014	298	40	12

2.PROCESS EQUIPMENT

R&D 4.0

Meeting demands of customers is our final standard of testing

3.Production Process

Automatic apexing machine

◆ Reduce the manual mis-operation.

◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.

Automatic apexing machine

◆ Reduce the manual mis-operation.

4.Technological advantages

Common tire mileage under standard use condition as following:

TT(Tube Type)tire: 60,000km to 100,000km

TL tire(Tubeless Type):150,000km to 200,000km

TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.

Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
