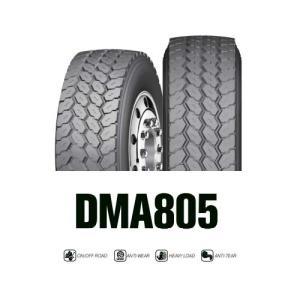

Truck & TBR tire Mining and Building tire DMA805
1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.
| Size | PR | Tread Depth | Standard Rim |
Pressure(PSI) |
Max. Load(LBS) |
Load Index | Speed Grade |
Inflated Diameter | |||||||
| mm | inch | ||||||||||||||
| mm | 32in | Single | Dual | Single | Dual | Single | Dual | Overal Diameter |
Section Width |
Overal Diameter |
Section Width |
||||
| 385/65R22.5 | 24 | 18.0 | 23 | 11.75 | 135 | / | 11000 | / | 164 | / | K | 1072 | 389 | 42 | 15 |
| 425/65R22.5 | 20 | 18.0 | 23 | 11.25 | 120 | / | 11400 | / | 156 | / | K | 1124 | 422 | 44 | 17 |
| 445/65R22.5 | 20 | 18.0 |
23 |
13.00 | 130 | / |
12780 | / |
169 | / | K |
1150 | 444 | 45 | 17 |
- Wide-base design for higher payload and flotation so tires maintain grip and traction without digging into the ground.
- Design feature that prevents stones from becoming trapped in the tread to protect the casing from potential damage.
- Optimized casing construction controls casing growth which strengthens footprint, improves resistance to irregular wear, and enhance retreadability.
- Special tread compound, improved resistance to cuts and chunking.
2.PROCESS EQUIPMENT
R&D 4.0
Meeting demands of customers is our final standard of testing
3.Production Process
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
4.Technological advantages
Common tire mileage under standard use condition as following:
TT(Tube Type)tire: 60,000km to 100,000km
TL tire(Tubeless Type):150,000km to 200,000km
TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.
Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
