DISTANCE : ≤1200km | ROAD CONDITIONS : Highways and National Highways |
| SPEED : ≤ 120km/h | LOAD : Standard Load |
| POSITION : Steer |
Product Design: Benchmarking with world-class brands (B brand, G brand), Adopting mature and market validated design and construction technologies.
Design Concept: Adopting FEA and STOT technology to analyze the force and temperature fields of tires to achieve optimal contour design and tread pattern design.
Construction Characteristics : CAE tool application + new materials + new pattern design
Special Process： long circulation of Cooling water to make sure of semi-parts clean, stable length and excellent adhesion;
Indepedent high-pressure air lines (dual air lines) in the building machine to ensure the inner profile reaching standard and carcass body ply turn up is stable.
performance feature: Excellent dynamic balancing performance, high wear resistance, low roll resistance, high cost performance, the forecast mileage of 460,000 kilometers
Wear-resistant tread formwla: he use of rare earth go d techno oov,utra-hioh wear-resistant carbon black and other strengthening materals to enhance the wearesistance and durability of tires
Optimize the profle design: fEA technology simulation, optimize the contour design, ensure the load demand on the basis of reducing the tire weight and cost
Forced die plate application: ensure the stability of various sizes of tire tread and improve the dynamic uniformity performance

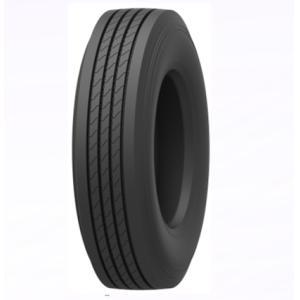

Energy-saving drive tires Heavy Truck Tire HLS915
1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.
SIZE | PR | PATTERN | Tread Depth（mm） | Tread Width （mm） | Standard Rim | Max Load（kg） | Pressure（kpa） | Speed Grade | ||
Single | Dual | Single | Dual | |||||||
11R22.5 | 16PR | HLS915 | 15 | 210 | 8.25 | 3000 | 2725 | 830 | 830 | M |
11R24.5 | 16PR | HLS915 | 15 | 210 | 8.25 | 3250 | 3000 | 830 | 830 | M |
295/75R22.5 | 16PR | HLS915 | 15 | 215 | 9.00 | 3000 | 2725 | 830 | 830 | M |
2.PROCESS EQUIPMENT
R&D 4.0
Meeting demands of customers is our final standard of testing
3.Production Process
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
Automatic apexing machine
◆ Reduce the manual mis-operation.
◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.
4.Technological advantages
Common tire mileage under standard use condition as following:
TT(Tube Type)tire: 60,000km to 100,000km
TL tire(Tubeless Type):150,000km to 200,000km
TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.
Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
