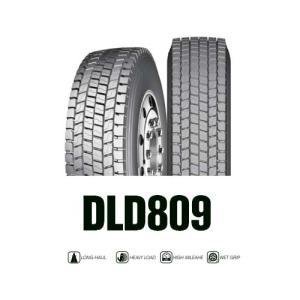

Truck & TBR tire Mining and Building tire DLD809

1.Our Moq is one 20GP container, you can choose different sizes loading in one container. We have whole series of TBR tires.

Size	PR	Tread Depth		Standard Rim	Pressure(PSI)		Max. Load(LBS)		Load Index		Speed Grade	Inflated Diameter
		Tread Depth			Pressure(PSI)		Max. Load(LBS)		Load Index			mm		inch
		mm	32in		Single	Dual	Single	Dual	Single	Dual		Overal Diameter	Section Width	Overal Diameter	Section Width
275/80R22.5	18	19.0	24	8.25	130	130	7160	6610	149	146	L	1012	276	40	11
295/80R22.5	18	18.5	23	9.00	131	130	7525	7160	152	149	M	1044	298	41	12

Wide tread width and block design increase the tire’s surface contact area and helps provide stability while helping to improve handling and mileage.
Open block structure and deep sides give outstanding grip especially in wintry conditions.

2.PROCESS EQUIPMENT

R&D 4.0

Meeting demands of customers is our final standard of testing

3.Production Process

Automatic apexing machine

◆ Reduce the manual mis-operation.

◆ On-line apexing enhances the adhesion of apex and bead-bundle.
◆ Improves the durability performance of bead assembly.
◆ Improve the quality of apex joint, dynamic balance and uniformity of tire.

Automatic apexing machine

◆ Reduce the manual mis-operation.

4.Technological advantages

Common tire mileage under standard use condition as following:

TT(Tube Type)tire: 60,000km to 100,000km

TL tire(Tubeless Type):150,000km to 200,000km

TL tire marked on sidewall by G indicates manufactured with high abrasionresistant compound formula : more than 350,000km.

Standard use conditions shown on sidewall of the tire, mileage variationsdepending on weather, temperature, road condition, loading, inflation pressure.driving skills and Vehicle performance ,etc.
